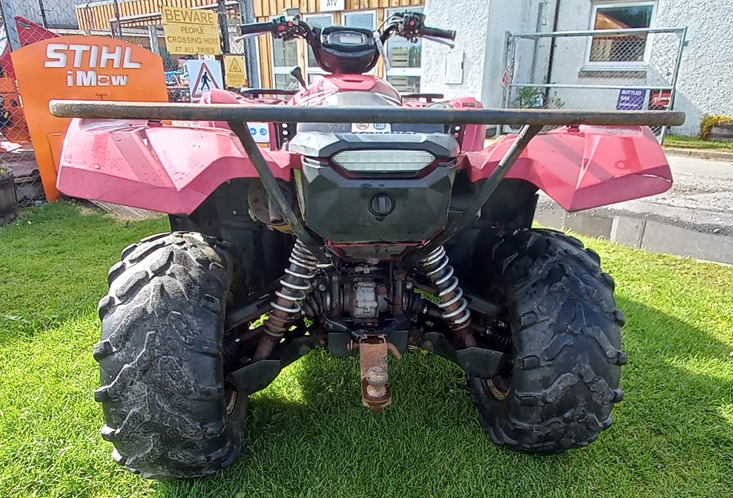

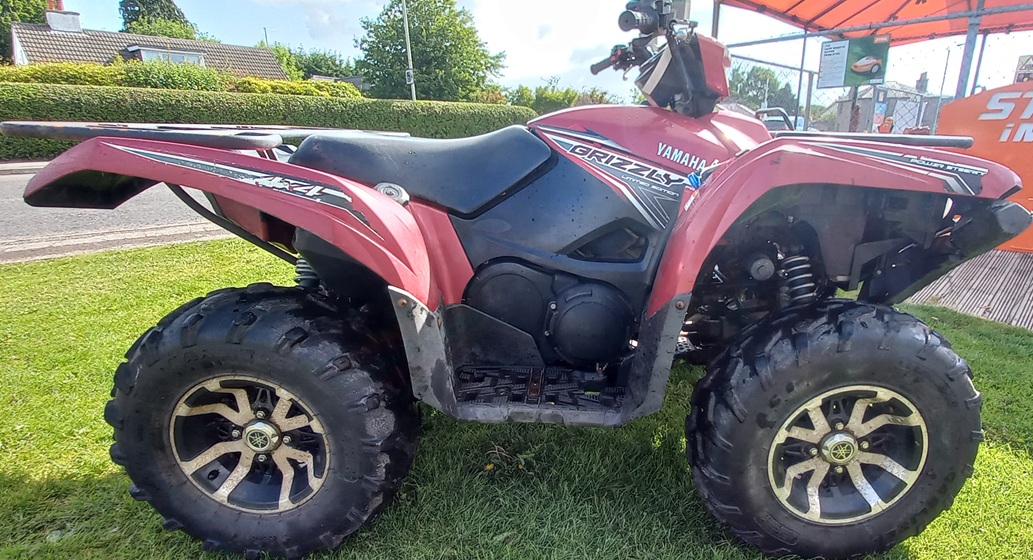

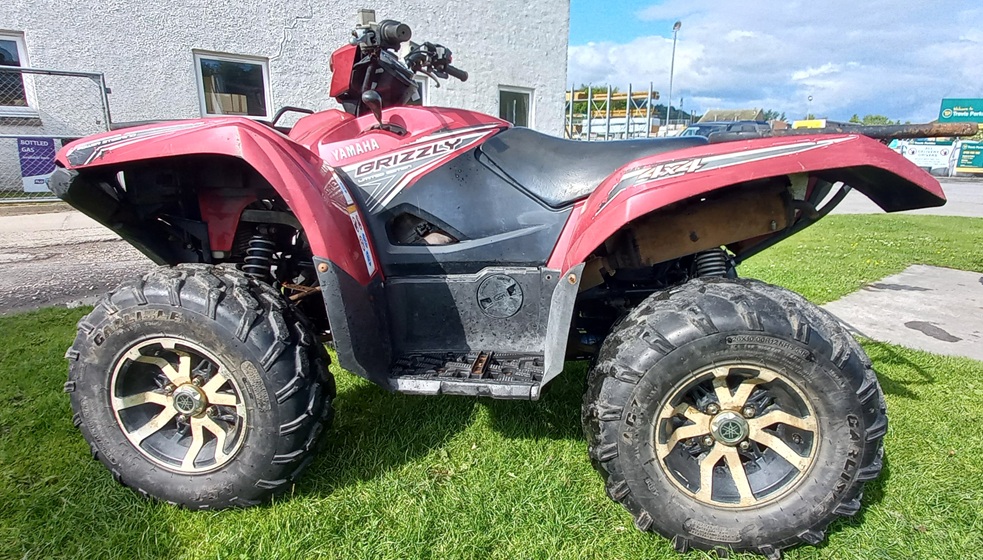

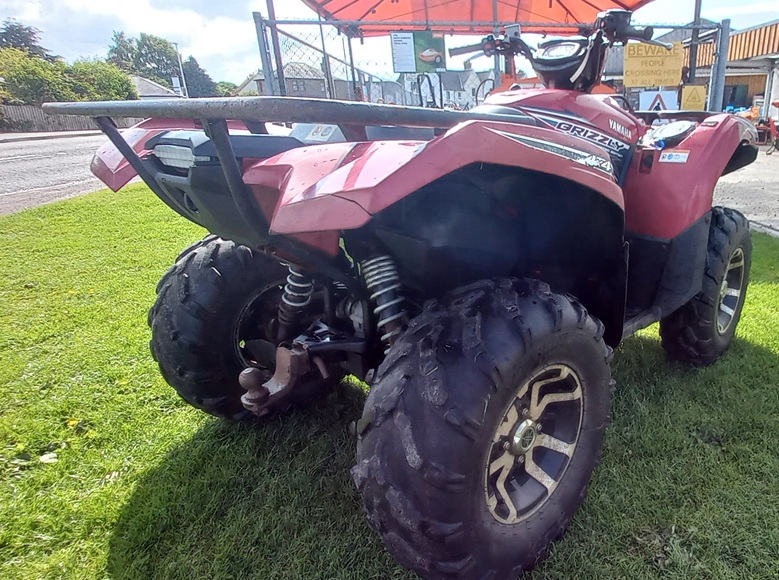

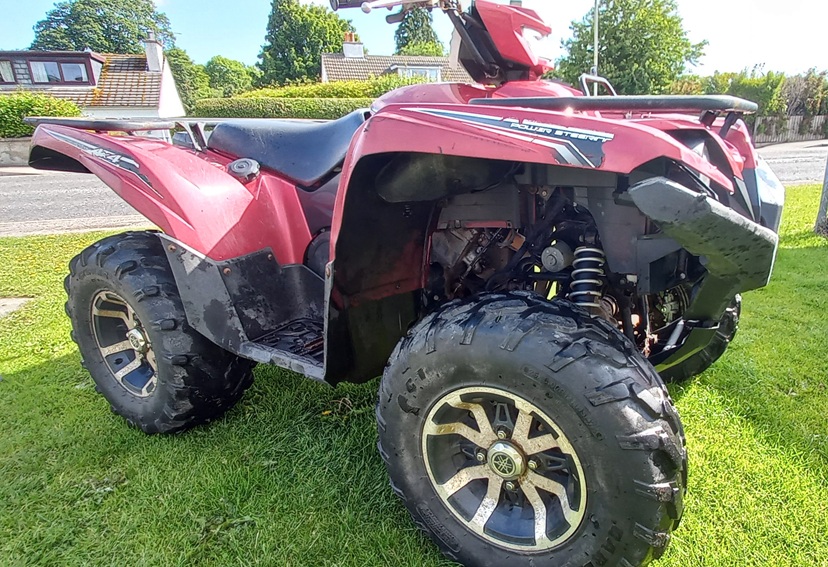

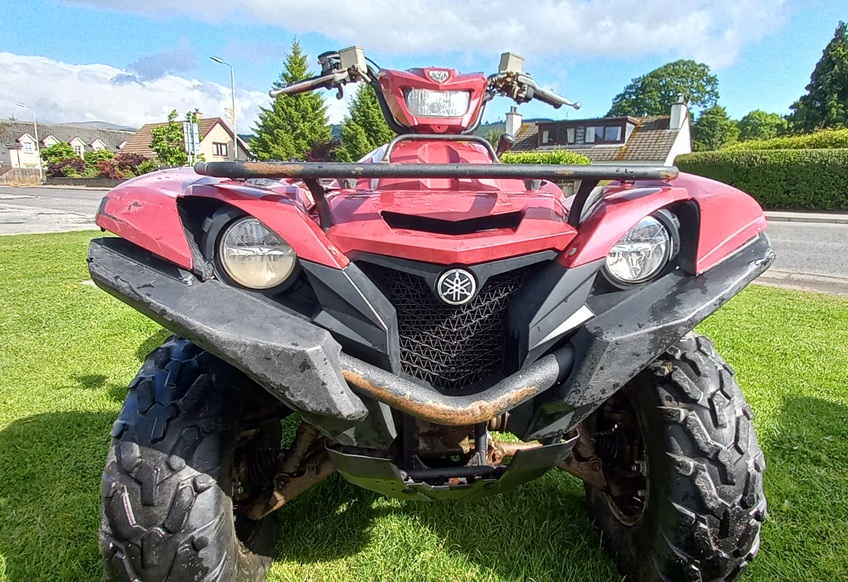

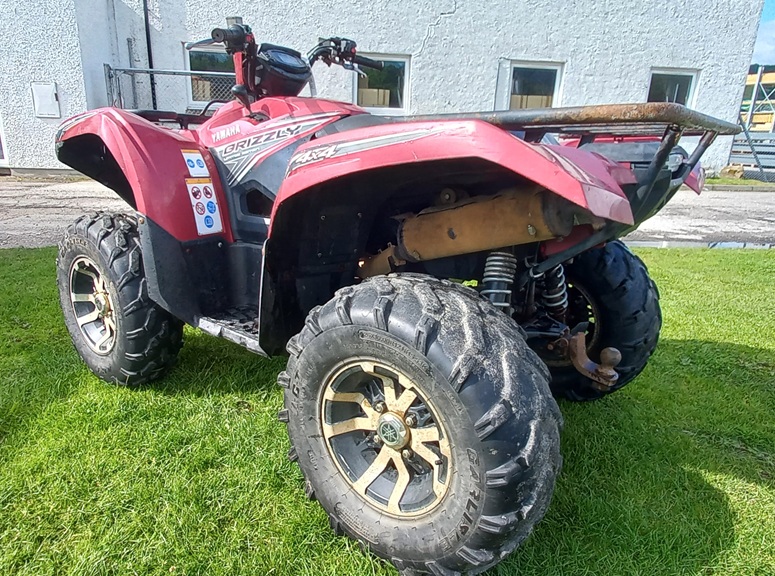

USED 2017

Grizzly 700 EPS

(Special Edition)

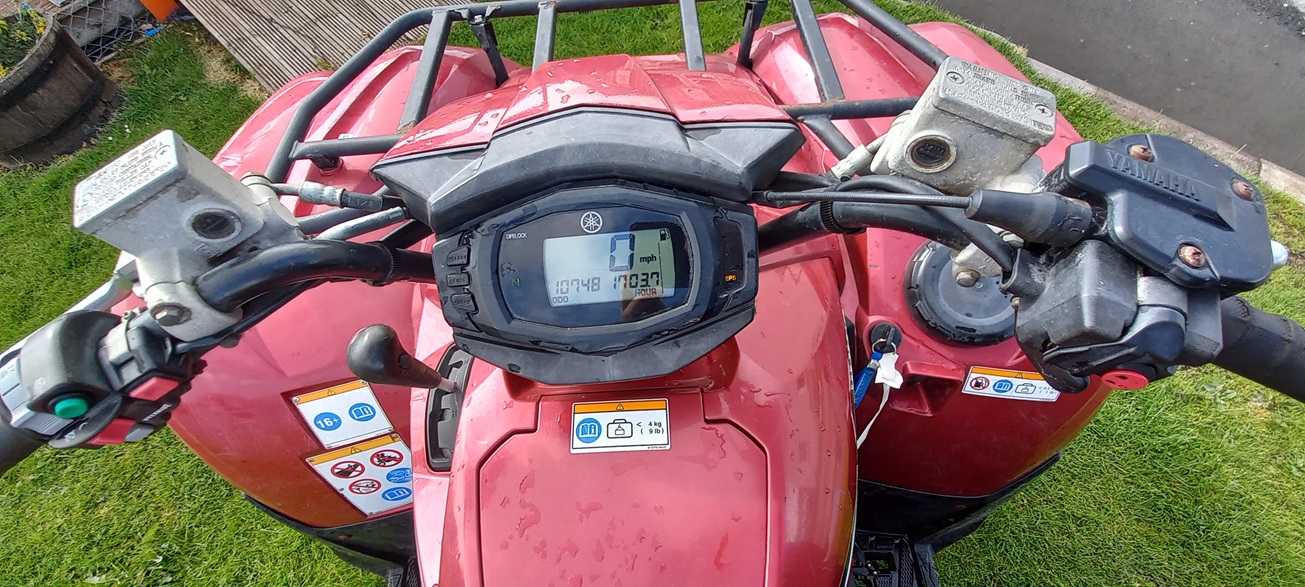

Approx. 10748 Miles and 1704 Hours

Serviced and ready to go

A force of nature.

Information below is as per a New Yamaha Grizzly:

Every Yamaha ATV is designed to handle the most challenging off-road terrain, and the class-leading Grizzly 700 EPS Alu comes with one of the widest ranges of sophisticated user-friendly technologies that make off road exploration easier and more rewarding.
The smooth-running Ultramatic® transmission instantly selects the best ratio for any given situation, enabling you to get maximum enjoyment on every ride – and with its effortless Electronic Power Steering and shock absorbing 26-inch tyres, the ergonomic chassis design ensures the ultimate riding comfort.
Features like the On-Command® drive system make switching from 2WD to 4WD so easy – and the high torque 686cc MK II engine has the power to get take you into the most extreme terrain. Fully equipped with powerful LED lights, digital instruments and a powerful winch, the Grizzly 700 EPS Alu is always ready to take you on a new adventure.

For all you #DRIVENBYFREEDOM o -road enthusiasts – who don’t like boundaries – the Grizzly 700 EPS Alu is the partner to have on your side. With its powerful 686cc engine and rugged chassis, the class-leading Grizzly is one of the world’s toughest compact off-roaders – giving you more freedom to explore.
Yamaha’s industry-leading Ultramatic® transmission automatically selects the optimum gearing for all types of terrain, while the natural all-wheel engine braking gives con dent downhill descents – and the On-Command® drive system allows you to switch seamlessly between 2WD, 4WD and DiffLock at the push of a button.
Electronic Power Steering gives a natural feedback for enhanced comfort and control – and with its four-wheel disc brake system and adjustable independent suspension, the Grizzly 700 EPS Alu is
ready to take on the most challenging terrain. It’s a true force of nature.

MK II 686cc SOHC engine
Yamaha’s biggest leisure ATV is driven by
a high-performance, large capacity engine
that delivers class-leading torque and
power. The 2nd generation MK II 686cc 4-
valve SOHC engine is equipped with the
latest EFI throttle body as well as netuned ECU mapping and re ned
tolerances that ensure low fuel
consumption, high levels of torque and
smooth engine performance.

Ultramatic® transmission
Equipped with High, Low, Reverse,
Neutral and Park modes, Yamaha’s
industry-leading Ultramatic® automatic
transmission is one of the most durable
and efficient CVT systems. Its instant reaction gearing is designed to tackle the
toughest terrain, and the natural feel of
the all-wheel engine braking gives you
added con dence and control on downhill
runs.

Independent suspension, disc brakes
The Grizzly 700 EPS Alu’s independent
suspension system uses nitrogen gas shocks
that are adjustable for preload, allowing the
rider to run various settings to suit differing
loads. This is also the only model in its class
featuring four wheel hydraulic disc brakes,
for outstanding braking performance with
plenty of feel.

On-Command® drive system
The intelligent On-Command® drive
system features a convenient push-button
control that allows you to switch
seamlessly and instantaneously from 2WD
to 4WD and back. By pressing a button on
the right-side handlebar you can select
2WD, 4WD or 4WD with Di Lock to
optimise the Grizzly’s performance in
changing terrain and weather conditions.

Carrying capacity and winch
The Grizzly 700 EPS Alu comes with one of
the highest standard specifications in its
category, and features a front-mounted
WARN VRX 25 winch that has the power
to haul you out of the stickiest situation.
With a carrying capacity of 140 kg and
able to tow 600 kg, this class leading
leisure ATV is the ideal partner for
hunting, shooting and camping adventures.

Electric Power Steering (EPS)
For added comfort and reduced physical
e ort the Grizzly 700 EPS Alu models are
equipped with Electronic Power Steering
(EPS) that has been designed to offer the
best balance of rider assist and positive
feedback. By maintaining light steering and
precise handling, this system enhances rider
comfort, confidence and control.

***If a Delivery is required, there may be a Carriage Charge. Please call for details***

Engine
Engine type                                                             Single cylinder;Liquid-cooled;4-stroke;SOHC;4-valves
Displacement                                                          686cc
Bore x stroke                                                           102.0 mm x 84.0 mm
Compression ratio                                                   10.1 : 1
Lubrication system                                                  Wet sump
Fuel system                                                             Electronic Fuel Injection
Ignition system                                                       TCI
Starter system                                                         Electric
Transmission system                                               L/H/N/R/P;Ultramatic® V-belt with front- and rear wheel engine braking
Drive system On-Command®                                2WD/4WD/diff-lock
Final transmission                                                   Shaft
Chassis
Front suspension system                                        Independent double wishbone;193 mm wheel travel;5 position preload adjustment
Rear suspension system                                         Independent double wishbone;232 mm wheel travel;5 position preload adjustment
Front brake                                                             Dual ventilated hydraulic disc
Rear brake                                                              Ventilated Disc;left hand/right foot operation
Front tyres                                                              Maxxis MU19 AT26x8-12, E marked, aluminium wheels
Rear tyres                                                                Maxxis MU19, AT26x10-12, E marked, aluminium wheels
Loading limits
Front rack                                                               50 kg
Rear rack                                                                90 kg
Dimensions
Overall length                                                        2,070 mm
Overall width                                                         1,230 mm
Overall height                                                        1,253 mm
Seat height                                                             860 mm
Wheelbase                                                             1,253 mm
Minimum ground clearance                                   288 mm
Min. turning radius                                                3.5 m
Fuel tank capacity                                                  18 litres
Oil tank capacity                                                    2.6 litres
Grizzly 700 EPS Alu
