USED - 2009 John Deere 2320 24HP Hydrostatic Compact Tractor
Powered by a Yanmar 3TNV76 1114cc Engine
0 reviews
0/5
In Stock
USED
John Deere 2320 24HP Hydrostatic Compact Tractor
Please call our Sales, Service or Parts teams on 01349 863854 for any enquiries.
Full Description
Tech. Specification
Releated Products & Accessories
Product Reviews (0)
Full Description
Used 2009

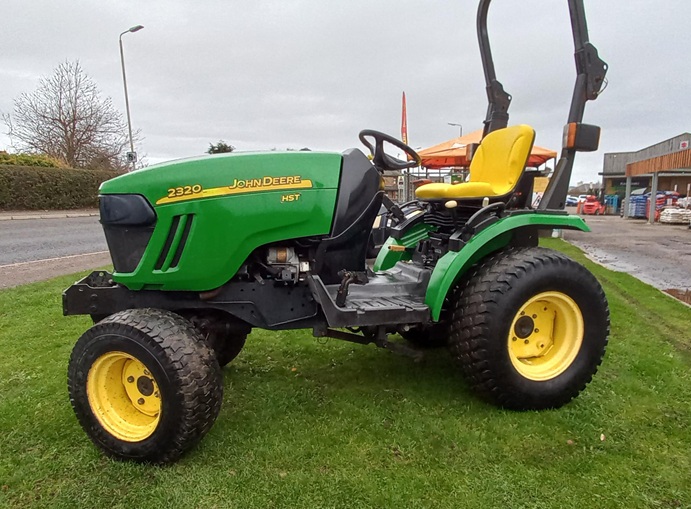

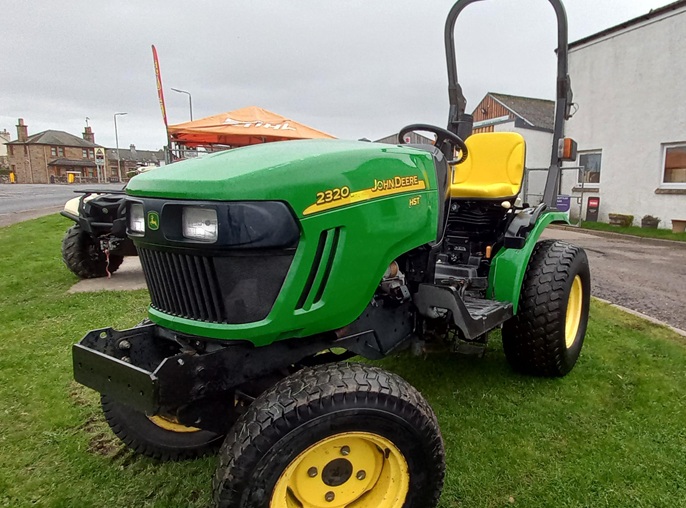

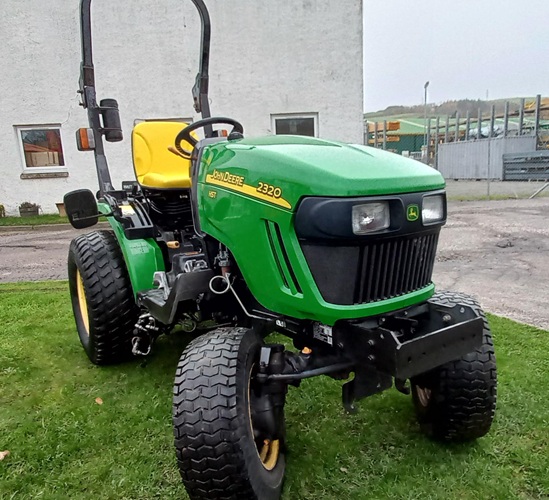

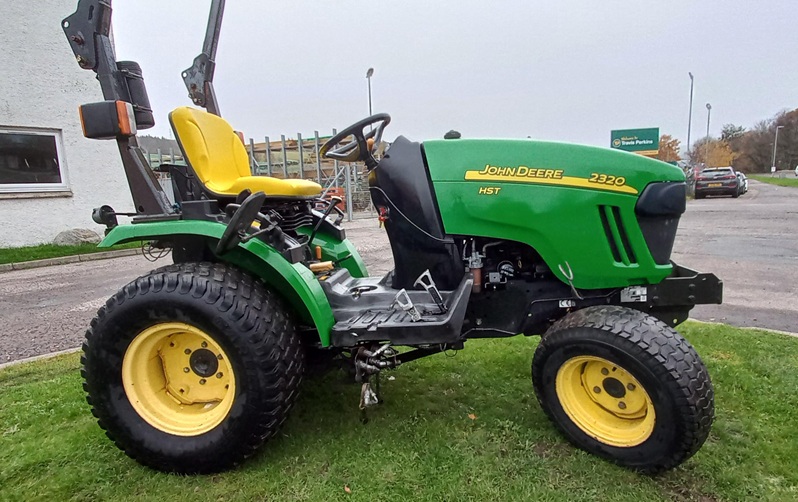

John Deere 2320 24HP Hydrostatic Compact Tractor

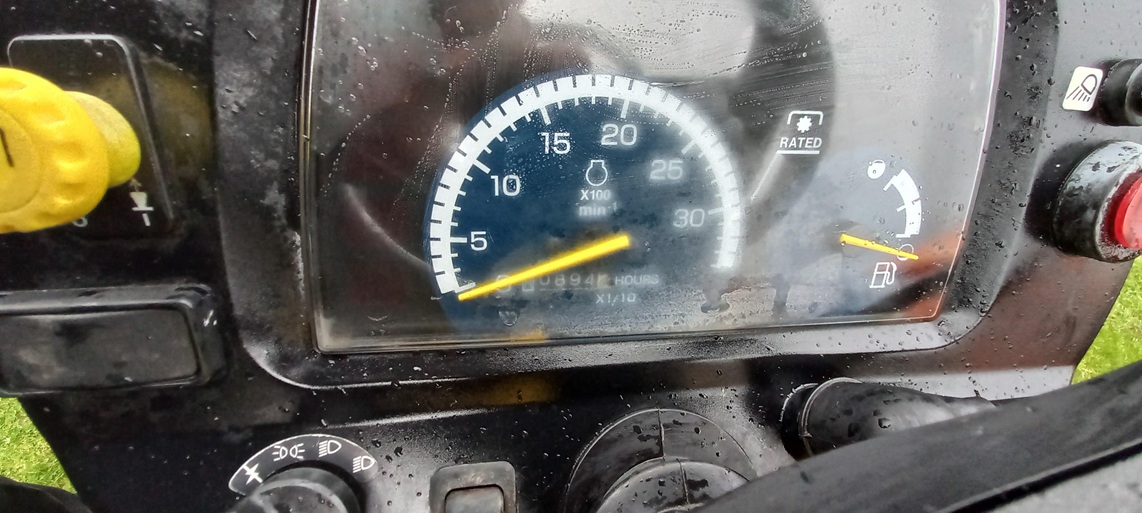

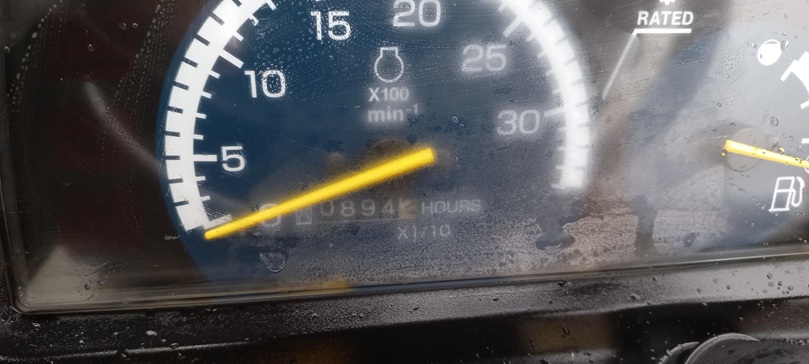

In very good condition, Serviced, with Genuine Low Hours – 894Hours
comes c/w 54D High Capacity Mid-Mount Mower Deck

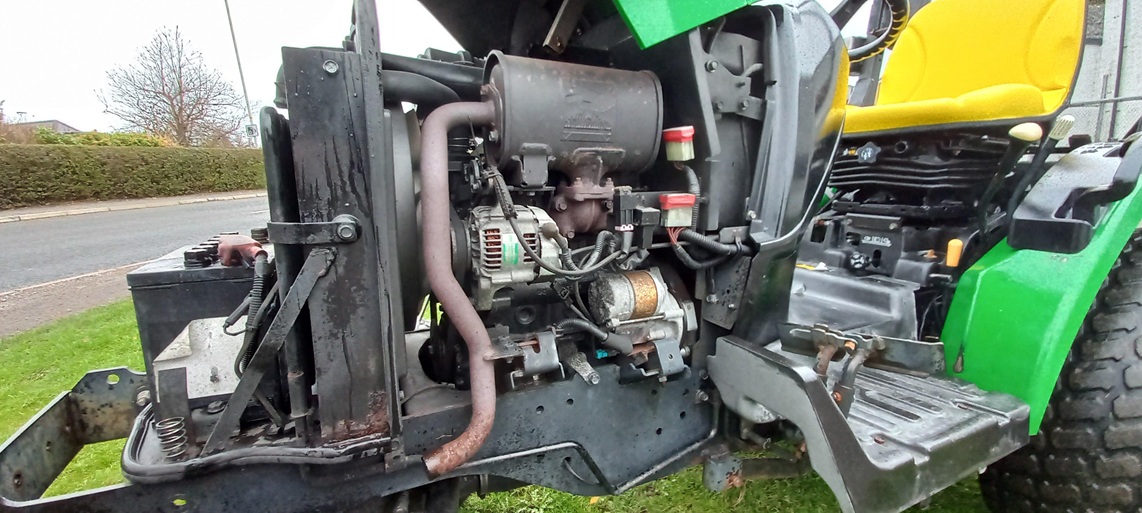

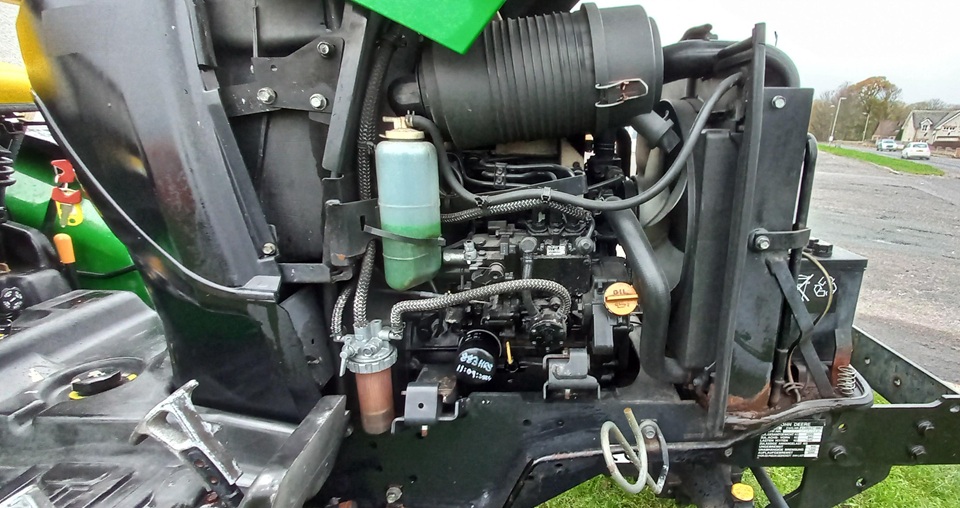

The John Deere 2320 compact utility tractor was manufactured from 2006 to 2012. The components of John Deere 2320 driveline system: Yanmar 3TNV76 4-cycle three-cylinder indirect injection liquid-cooled diesel engine and two-range hydrostatic transmission with infinite forward and reverse gears.
***If a Delivery is required, there may be a Carriage Charge. Please call for details***
Tech. Specification
| General Specifications | |
| Model | John Deere 2320 |
| Length | 2,770 mm (109.1 in) |
| Width | 1,290 mm (50.8 in) |
| Height | 2,260 mm (89 in) |
| Wheel base | 1,600 mm (63 in) |
| Weight | 752 kg (1,660 lbs) |
| Fuel tank capacity | 23.0 liters (6.1 US gal.; 5.1 Imp. gal) |
| Battery | 12V CCA: 500A |
| Cabin type | Open operator station with two-post ROPS |
| Engine | |
| Engine model | Yanmar 3TNV76 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.1 L, 1,114 cm2, (68.0 cu·in) |
| Bore and stroke | 76.0 mm X 82.0 mm (2.99 in X 3.23 in) |
| Compression ratio | 23.4:1 |
| Horsepower | 24.5 PS (18.0 kW; 24.0 HP) at 3,000 rpm |
| Torque | 56.5 N·m (5.8 kg·m, 41.6 ft·lb) |
| Starter | Electric |
| Oil capacity: | 3.2 L (3.38 US. qt, 2.82 Imp. qt.) |
| Coolant capacity: | 3.2 L (3.38 US. qt, 2.82 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet disc |
| Final drive | Spur gear |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (2-range) forward and reverse |
| Transmission oil capacity | 9.8 L (2.6 US. gal, 2.2 Imp. gal.) |
| Three-Point Hitch | |
| Caterogy | 1 |
| Control type | Position control |
| Lift capacity (at ends) | 650 kg (1,433 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent |
| Middle PTO spped | 2,100 rpm |
| Rear PTO type | Independent |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 9.8 L (10.36 US. qt, 8.62 Imp. qt.) |
| Pressure | 2,421 psi (167 bar) |
| Valves | 2 |
| Pump flow | 3.4 gpm (12.9 lpm) |
| Steering flow | 2.2 gpm (8.3 lpm) |
| Total flow | 5.6 gpm (21.2 lpm) |
